Description

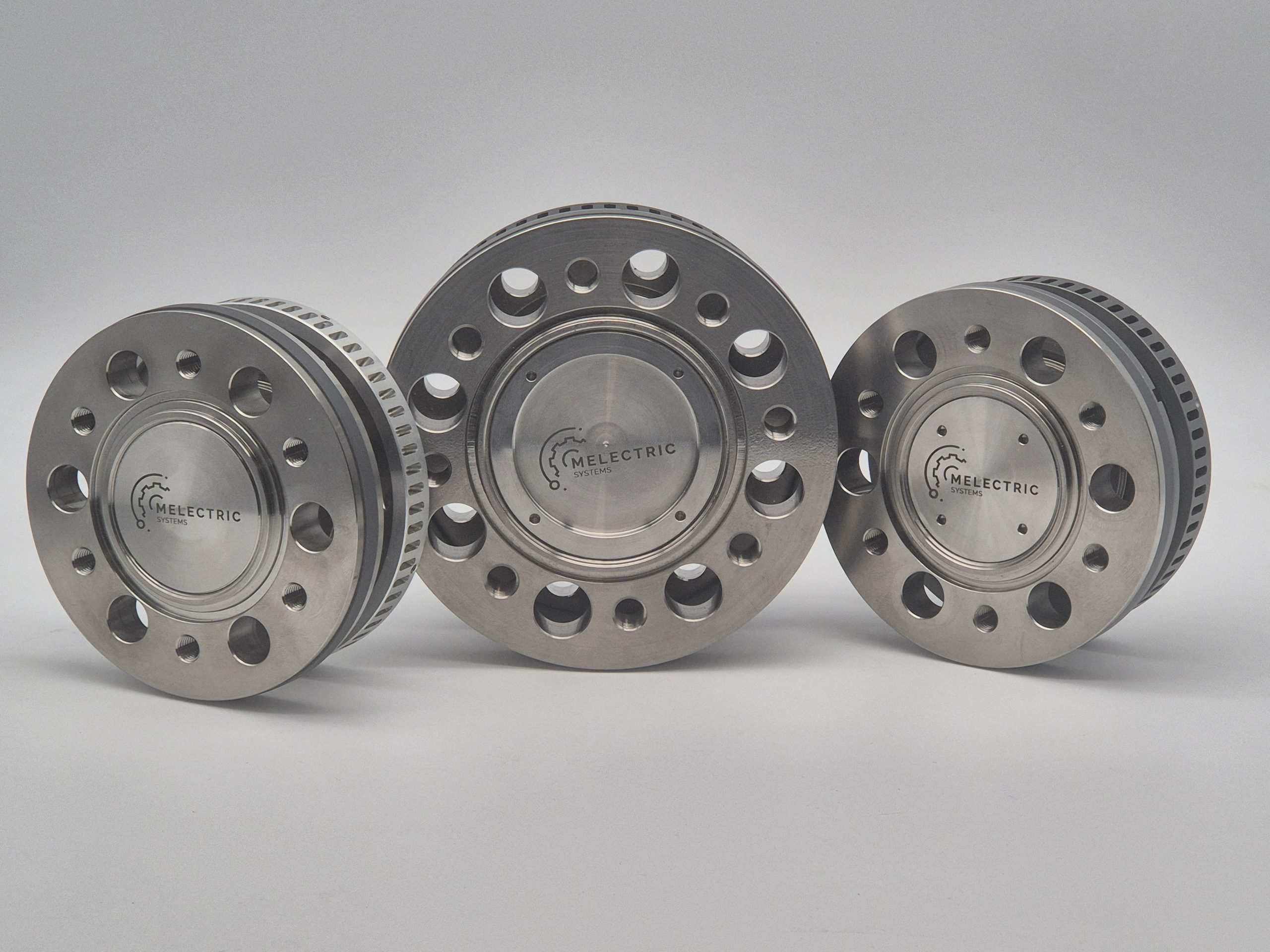

ME-FS High Precision Torque Flange
Key Features:
- Torque Range: 50 Nm to 10,000 Nm
- High Rotational Speed: Up to 15,000 RPM
- Output Options: -5V to 5V, -10V to +10V, 4-20mA, or CAN Bus (optional)
- Accuracy: 0.05% FS nominal
- Short design: axial length starting from 51 mm
- High Sampling Rate: 500 Hz with 16-bit signal resolution
- Roatational speed: Measurement integrated
Product Overview:
The MEFS Torque Flange is a state-of-the-art torque measurement solution designed for precision and reliability in demanding applications. With its wide measurement range and high rotational speed capability, the MEFS Torque Flange is ideal for various industries, including automotive testing, industrial machinery, and research applications.
The flangecomes with a factory calibration and integrated advanced signal processing unit, delivering accurate and consistent readings. The compact design and compatibility with multiple output signals make it a versatile addition to your measurement setup.
Applications:
- Automotive Testing: Torque measurement for engine and drivetrain components.
- Industrial Machinery: Monitoring torque in Test Setups
- Research and Development: High-precision testing in laboratory environments.
- Test Benches: Durable solution for dynamic load conditions.
Why Choose the MEFS Torque Flange?
- Precision Engineering: Ensures highly accurate torque readings.
- Durable Design: Built to handle demanding applications and high speeds.
- Versatility: Compatible with various signal outputs for easy integration.
- Support & Maintenance: Annual recalibration services are available from Melectric Systems GmbH.
Customization Options: For unique requirements or customized dimensions, contact us at info@melectric-systems.de.
Disclaimer: For international shipments, a surcharge of 10% on the product price will be applied. All product configurations and specifications are subject to further adjustments and upgrades conducted by Melectric. Intermediate sales are subject to prior availability. All prices are exclusive of VAT. Sales are exclusively for B2B customers.
